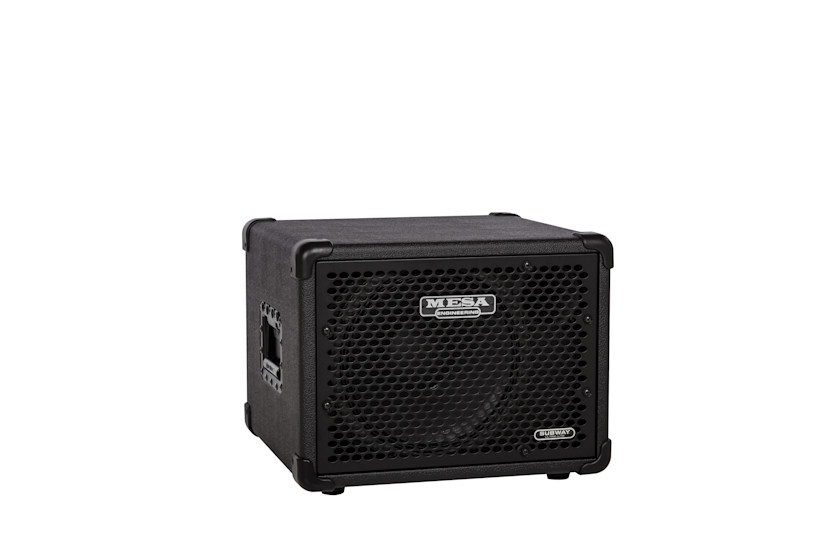

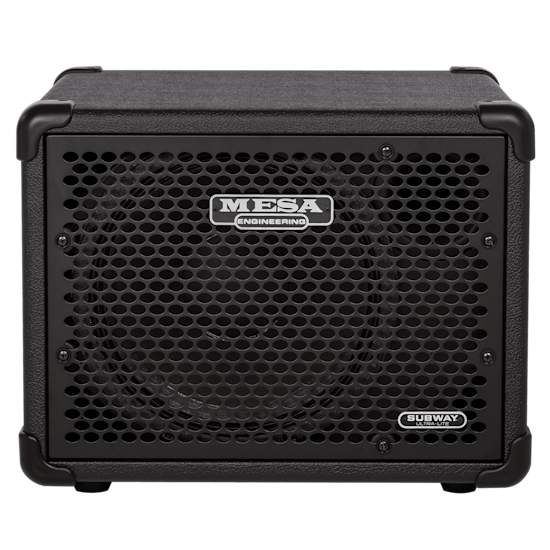

1x12 Subway Bass
Our Most Compact Subway Cabinet
Our most compact Subway Cabinet, the 1x12 Ultra-Lite combines finely-tuned porting, Top-grade ply, aircraft-style bracing, a super-responsive and efficient neodymium 12” Driver and our musical sounding HF Driver to create an amazing compact Bass cabinet that can handle smaller venues surprisingly well by itself, or combined with another 1x12, a 1x15 or larger format cabinets of different speaker sizes for coverage and flavor, always minding proper impedance loading and/or matching of course, for a multi-dimensional Cabinet array.
Cabinet Material
Light-Weight Italian Poplar
Standard Finish Options (no extra cost)
Choice of Black Bronco or Black Taurus Vinyl with Black Metal Grille
Corner Material
Lexan
Custom Finish Options
See Custom Finish Gallery
Styletype
Tuned Front Ported Tri-Porting™ (1 x 4.85" square x 4" deep / port area = 24.0 sq. in.)
Cabinet Internal Volume
2.05CF
Speakers Mounting Position
Subway Neodymium Speakers / Front Mounted
High Frequency Horn
Yes
Horn Control
Premium Attenuator

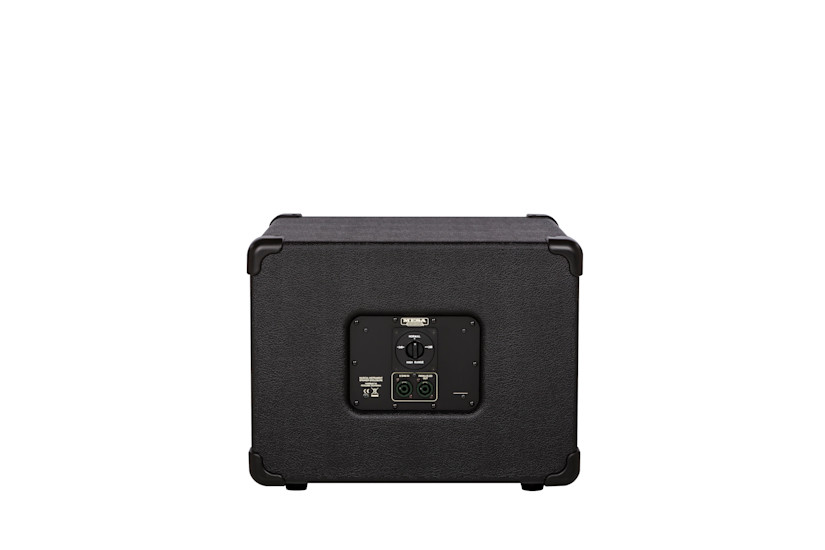

Inputoutput Connectors
2 x SpeakOn-1/4" (NL-4 combo)
Nominal Impedance
8 ohms (only)
Minimum Impedance @Frequency
7.45 ohms (@ 50.8 Hz)
Average Sensitivity (RMS) 50hz-1000hz
97.5dB/1W/1M
Average Mechanical Power (RMS) 50hz-1000hz
400 Watts
Minimum Mechanical Power (RMS) @Frequency
385 Watts (@ 74.3Hz)
Low Freq F3 (Hz)
57.5 Hz
Low Freq F6 (Hz)
48.1 Hz
Low Freq F10 (Hz)
41.5 Hz
High Freq Response
>12kHz
Transport Assistance
Optional (sold separately) - Track-Loc™ Removable Casters
Additional Features
Optional/Convertible Vertical Cabinet Orientation
Slip Cover
Included - Fitted Slip Cover
Weight
32.9 Lbs.
Height
15 1/4"
Width
19 1/4"
Depth
18 1/4"
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
