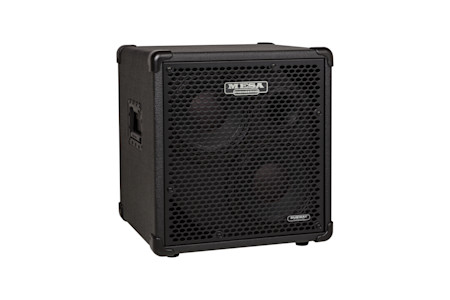

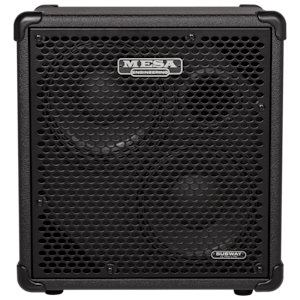

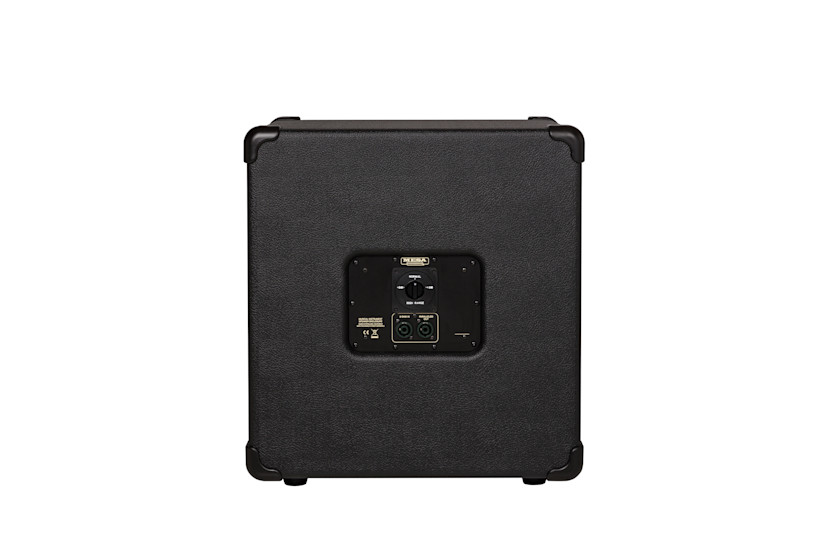

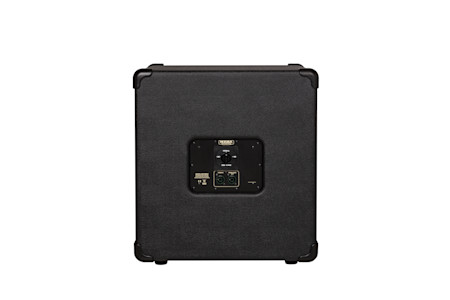

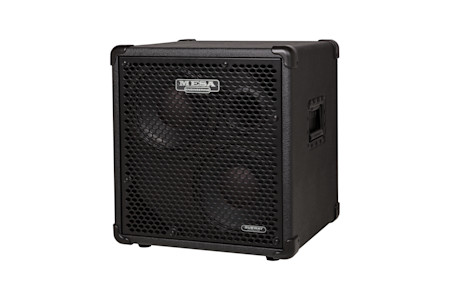

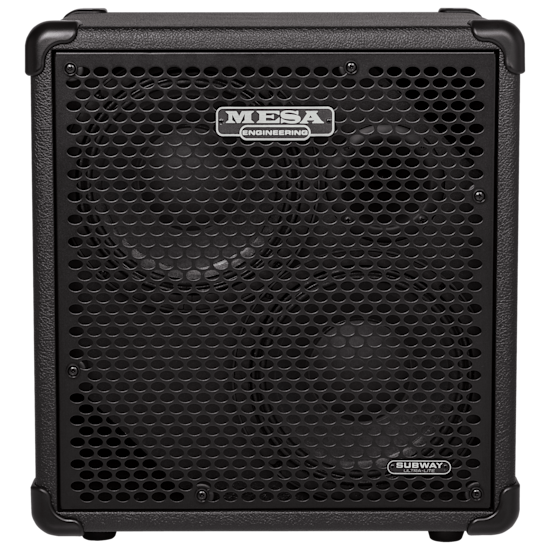

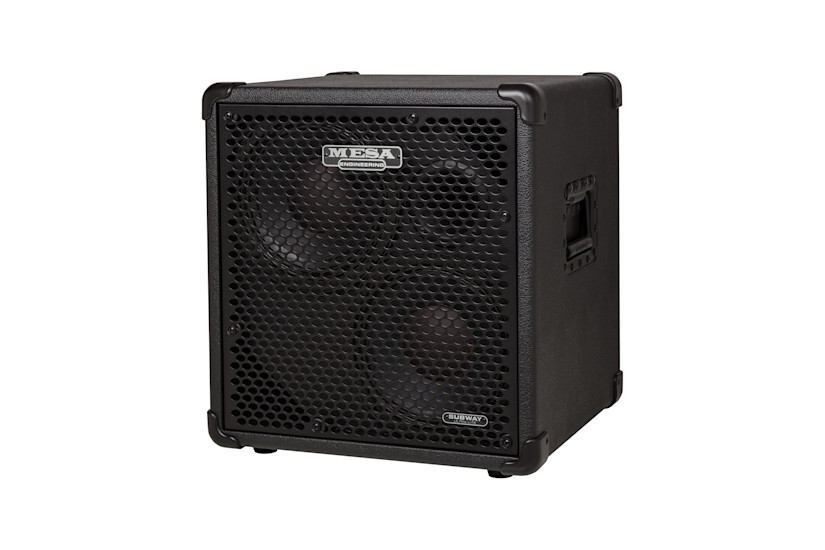

2x10 Subway Diagonal Bass
The Compact Solution for Players who Prefer the Midrange Articulation and Focus of 10s
The 2x10 is the compact solution for players who prefer the midrange articulation and focus of 10s, but need a smaller option than the classic 4x10. Combining two allows a more portable solution than one heavier quad-box and the ability to take one for rehearsal or small venues and two for gigs with louder bands or in bigger venues. Using the 2x10 in combination with a 1x12 or 1x15 imparts color, articulation and iconic midrange punch along with more volume. Built with all the same woods, aircraft-style bracing and Tri-Port™ porting, the 2x10 Ultra-Lite brings another key voice to the modular approach in compact, lightweight Bass Cabinetry.
Cabinet Material
Light-Weight Italian Poplar
Standard Finish Options (no extra cost)
Choice of Black Bronco or Black Taurus Vinyl with Black Metal Grille
Corner Material
Lexan
Custom Finish Options
See Custom Finish Gallery
Styletype
Tuned Front Ported Tri-Porting™ (2 x 5.25 square x 4" deep / port area = 30.25 sq. in.)
Cabinet Internal Volume
2.96CF
Speakers Mounting Position
Subway Neodymium Speakers / Front Mounted
High Frequency Horn
Yes
Horn Control
Premium Attenuator
Inputoutput Connectors
2 x SpeakOn-1/4" (NL-4 combo)
Nominal Impedance
8 ohms (only)
Minimum Impedance @Frequency
7.90 ohms (@21Hz)
Average Sensitivity (RMS) 50hz-1000hz
98.1dB/1W/1M
Average Mechanical Power (RMS) 50hz-1000hz
500 Watts
Minimum Mechanical Power (RMS) @Frequency
425 Watts (@81.3Hz)
Low Freq F3 (Hz)
53.6 Hz
Low Freq F6 (Hz)
48.0 Hz
Low Freq F10 (Hz)
42.1 Hz
High Freq Response
>12kHz
Transport Assistance
Optional (sold separately) - Track-Loc™ Removable Casters
Additional Features
n/a
Slip Cover
Included - Fitted Slip Cover
Weight
43 Lbs.
Height
21"
Width
19 1/4"
Depth
18 1/4"
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
