Wattage

Multi-Watt™ 10 or 25 (Channel Assignable)

Channels & Modes

2 Channels / 6 Modes

Mode Voicings styles

Ch. 1 = Clean, Fat or Crunch Ch. 2 = Mark IIC+™, Mark IV™ or Extreme

Graphic Eq Reverb Fx Solo

Graphic EQ, Reverb & FX Loop

Foot switchable Functions

Ch. 1/2 & EQ

Speakers Impedance

1 - 8 Ohm Celestion G10 Creamback / Ttl Load = 8 Ohms

Weight

24 Lbs.

Dimensions

14 3/4" H x 14 1/8" W x 9 3/8" D

Available Formats

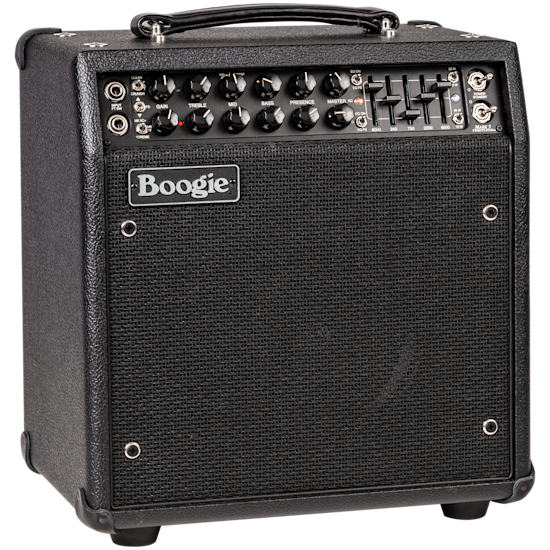

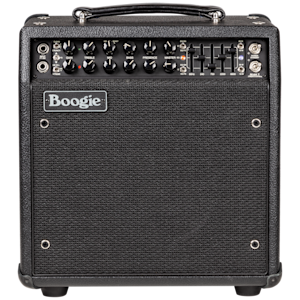

Head & 1x10 Combo

Amp Type

Tube

Rectifier Type

Silicon Diodes

Rectifier Tubes

n/a

Variac PowerSwitch

n/a

Preamp Tubes

6x Mesa 12AX7

Power Amp Tubes

2x Mesa EL-84

Maintenance Free Fixed Bias

Yes

Wattages Quick Reference

10 or 25 Watts - Channel Assignable - See Power Amp Details for more information

Built In Power Amp Attenuation

n/a

Power Amp Details Class Wattage

Mesa's Patented Multi-Watt™ (Patent 7,602,927) Power Amp, featuring Dyna-Watt™ technology, providing two power levels, each with different wiring configurations (Pentode/Triode) via two 10/25 Watt Power Switches: Choose from 2 power tubes operating in Class A/B Triode for lush harmonics and a sweet, liquid feel at lower volumes, producing 10 Watts or; 2 tubes operating in Mesa's proprietary Dyna-Watt™ Class A/B Pentode for maximum power, punch and clarity, producing 25 Watts

Number Of Style Modes

Six

Number Of Style Modes Per Channel

Three

Channel Controls

Each Channel features Independent 3-Position Style Mode Switch, 10/25 Watt Multi-Watt™ Switch, Gain, Treble, Mid/Boost* (Ch 1), Mid (Ch 2), Bass, Presence, Reverb (back panel), Master and Graphic EQ Assignment Switch (On, Off or Footswitchable) - *The Mid/Boost Control on Channel 1 doubles as a standard Mid Control when set between 0 to 5 and turns into a Variable Gain Boost when set from 5 to 10

Graphic Eq And/or Contour

Selectable 5-Band Graphic EQ (Footswitchable, Channel Assignable or Off)

Reverb Effects Bypass Options

All-Tube, Spring Reverb with Independent Channel Controls

Effects Loop Bypass Options

Fully Buffered Series FX Loop

Global Output Level Control

n/a

Global Solo Level Control

n/a

True Bypass Options

n/a

External Switching Jack Options And/or Midi

n/a

Speaker Outputs

One 8 Ohm and Two 4 Ohm

Cabinet Simulation Direct Live recording Output

Built-in Mesa CabClone™ Cab Simulator with Internal Amp Load & Headphone Output - Featuring Closed Back & Open Back Cabinet Simulations, Speaker On/Off and Ground Lift Switches

Internal Amp Load For SpeakerLess Performance

Yes (see Cabinet Simulation for more information)

Headphone Output

Yes (see Cabinet Simulation for more information)

Slave Output

n/a

Extra Features

n/a

Footswitch

Included - 2 Button Footswitch (Ch. 1/2 & EQ)

Slip Cover

Included - Fitted Slip Cover

Cabinet Material

Marine Grade, Baltic Birch

Standard Finish Options (No Extra Cost)

Black Bronco Vinyl, Black Jute Grille, Black Handle & Corners

Custom Finish Options

See Custom Finish Gallery

Speakers Impedance

1 - 8 Ohm Celestion G10 Creamback / Ttl Load = 8 Ohms

Casters

n/a

Extra Features

n/a

Weight

24 Lbs.

Height

14 3/4"

Width

14 1/8"

Depth

9 3/8"

Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
