{{ featureCallout.Title }}
Wattage
Multi-Watt™ 10, 25 or 35 (Channel Assignable)
Channels & Modes
2 Channels / 6 Modes
Mode Voicings styles
Ch. 1 = Clean, Fat or Crunch Ch. 2 = Mark IIC+™, Mark IV™ or Extreme
Graphic Eq Reverb Fx Solo
Graphic EQ, Reverb, FX Loop & Ch. Independent Solo
Foot switchable Functions
Ch. 1/2, EQ, Solo Ch 1 & Solo Ch 2
Speakers Impedance
n/a
Weight
27 Lbs.
Dimensions
9 1/8" H x 18 3/4" W x 10 7/8" D
KEY NOT FOUND

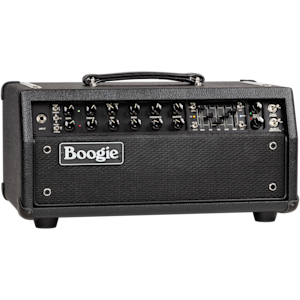

Head, Rackmount & 1x12 Combo
Amp Type
Tube
Rectifier Type
Silicon Diodes
Rectifier Tubes
n/a
Variac PowerSwitch
n/a

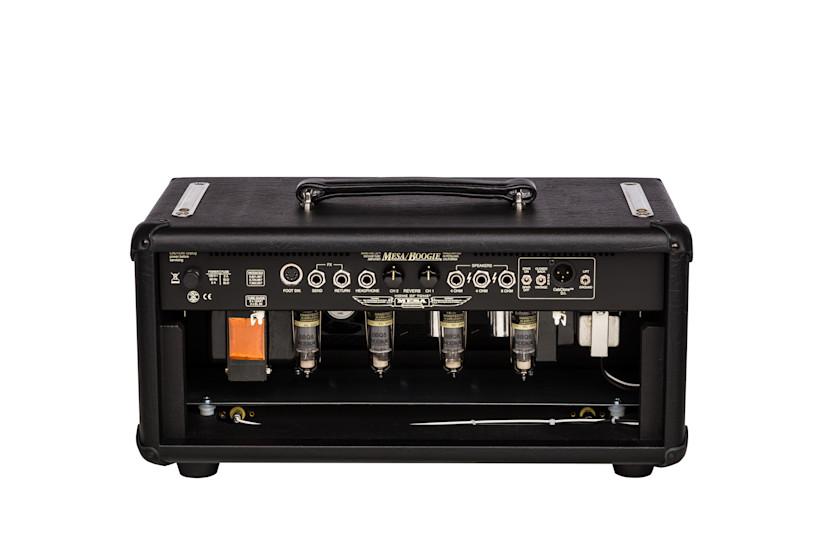

Preamp Tubes
6x Mesa 12AX7
Power Amp Tubes
4x Mesa EL84
Maintenance Free Fixed Bias
Yes
Wattages Quick Reference
10, 25 or 35 Watts - Channel Assignable - See Power Amp Details for more information
Built In Power Amp Attenuation
n/a
Power Amp Details Class Wattage
Mesa's Patented Multi-Watt™ (Patent 7,602,927) Power Amp, featuring Dyna-Watt™ technology, providing three power levels and two wiring configurations (Pentode/Triode) via two 10/25/35 Watt Power Switches: Choose from 2 power tubes operating in Class A/B Triode for lush harmonics and a sweet, liquid feel at lower volumes, producing 10 Watts or; 2 or 4 tubes operating in Mesa's proprietary Dyna-Watt™ Class A/B Pentode for maximum power, punch and clarity, producing 25 or 35 Watts respectively
Number Of Style Modes
Six
Number Of Style Modes Per Channel
Three
Channel Controls
Each Channel features Independent 3-Position Style Mode Switch, 10/25/35 Watt Multi-Watt™ Switch, Gain, Treble, Mid/Boost* (Ch 1), Mid (Ch 2), Bass, Presence, Reverb (back panel), Master, Footswitchable Channel Independant Solo and Graphic EQ Assignment Switch (On, Off or Footswitchable) - *The Mid/Boost Control on Channel 1 doubles as a standard Mid Control when set between 0 to 5 and turns into a Variable Gain Boost when set from 5 to 10
Graphic Eq And/or Contour
Selectable 5-Band Graphic EQ (Footswitchable, Channel Assignable or Off)
Reverb Effects Bypass Options
All-Tube, Long-Tank Spring Reverb with Independent Channel Controls
Effects Loop Bypass Options
Fully Buffered Series FX Loop
Global Output Level Control
n/a
Global Solo Level Control
Footswitchable, Channel Independent Solo Controls
True Bypass Options
n/a
External Switching Jack Options And/or Midi
n/a
Speaker Outputs
One 8 Ohm and Two 4 Ohm
Cabinet Simulation Direct Live recording Output
Built-in Mesa CabClone™ Cab Simulator with Internal Amp Load & Headphone Output - Featuring Closed Back, Open Back & Vintage Cabinet Simulations, Speaker On/Off and Ground Lift Switches
Internal Amp Load For SpeakerLess Performance
Yes (see Cabinet Simulation for more information)
Headphone Output
Yes (see Cabinet Simulation for more information)
Slave Output
n/a
Extra Features
Larger Transformers than the Mark Five: 25
Footswitch
Included - 4 Button Footswitch (Ch. 1/2, EQ, Solo Ch 1 & Solo Ch 2)
Slip Cover
Included - Fitted Slip Cover
Cabinet Material
Marine Grade, Baltic Birch
KEY NOT FOUND
Black Bronco Vinyl, Black Jute Grille, Black Handle & Corners
Custom Finish Options
See Custom Finish Gallery
Speakers Impedance
n/a
Casters
n/a
Extra Features
n/a
Weight
27 Lbs.
Height
9 1/8"
Width
18 3/4"
Depth
10 7/8"
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
