Wattage

Multi-Watt™ 10 or 25 (Channel Assignable)

Channels & Modes

2 Channels / 4 Modes

Mode Voicings styles

Ch. 1 = Clean or Pushed Ch. 2 = Vintage or Modern

Graphic Eq Reverb Fx Solo

Reverb, FX Loop

Foot switchable Functions

Ch. 1/2

Speakers Impedance

n/a

Weight

19 Lbs.

Dimensions

7 1/2" H x 17 1/2" W x 9" D

Available Formats

Head, Rackmount & 1x12 Combo

Amp Type

Tube

Rectifier Type

Silicon Diodes

Rectifier Tubes

n/a

Variac PowerSwitch

n/a

Preamp Tubes

6x Mesa 12AX7

Power Amp Tubes

2x Mesa EL-84

Maintenance Free Fixed Bias

Yes

Wattages Quick Reference

10 or 25 Watts - Channel Assignable - See Power Amp Details for more information

Built In Power Amp Attenuation

n/a

Power Amp Details Class Wattage

Mesa's Patented Multi-Watt™ (Patent 7,602,927) Power Amp, featuring Dyna-Watt™ technology, providing two power levels, each with different wiring configurations (Pentode/Triode) via two 10/25 Watt Power Switches: Choose from 2 power tubes operating in Class A/B Triode for lush harmonics and a sweet, liquid feel at lower volumes, producing 10 Watts or; 2 tubes operating in Mesa's proprietary Dyna-Watt™ Class A/B Pentode for maximum power, punch and clarity, producing 25 Watts

Number Of Style Modes

Four

Number Of Style Modes Per Channel

Two

Channel Controls

Each Channel features Independent 2-Position Style Mode Switch, 10/25 Watt Multi-Watt™ Switch, Gain, Treble, Mid, Bass, Presence, Reverb (back panel) and Master Control

Graphic Eq And/or Contour

n/a

Reverb Effects Bypass Options

All-Tube, Long Spring Reverb with Independent Channel Controls (back panel)

Effects Loop Bypass Options

Fully Buffered Series FX Loop

Global Output Level Control

n/a

Global Solo Level Control

n/a

True Bypass Options

n/a

External Switching Jack Options And/or Midi

External Switching Jack for Reverb

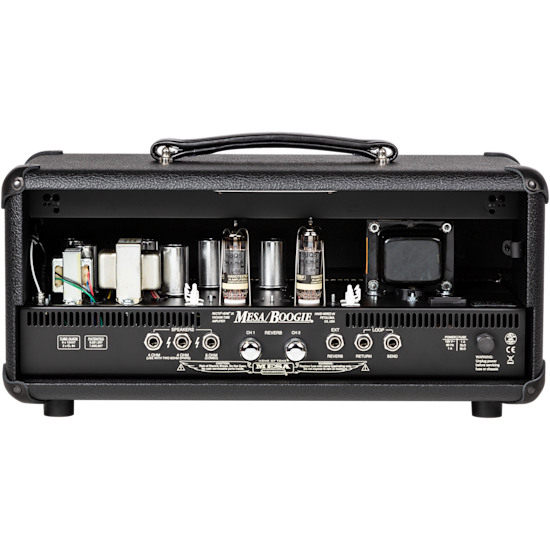

Speaker Outputs

One 8 Ohm and Two 4 Ohm

Cabinet Simulation Direct Live recording Output

n/a

Internal Amp Load For SpeakerLess Performance

n/a

Headphone Output

n/a

Slave Output

n/a

Extra Features

n/a

Footswitch

Included - 1 Button Footswitch (Ch. 1/2)

Slip Cover

Included - Fitted Slip Cover

Cabinet Material

Marine Grade, Baltic Birch

Standard Finish Options (No Extra Cost)

Black Bronco Vinyl, Black Jute Grille, Black Handle & Corners

Custom Finish Options

See Custom Finish Gallery

Speakers Impedance

n/a

Casters

n/a

Extra Features

n/a

Weight

19 Lbs.

Height

7 1/2"

Width

17 1/2"

Depth

9"

Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
