Wattage

50 Watts

Channels & Modes

3 Channels / 2 Modes per Channel

Mode Voicings styles

Ch. 1 = Normal (Clean) or Drive Ch. 2 = Normal (Modern Crunch) or Tight Ch. 3 = Normal (High-Gain) or Tight

Graphic Eq Reverb Fx Solo

Reverb, FX Loop, Solo

Foot switchable Functions

Ch. 1, 2, 3, Reverb, FX Loop & Solo

Speakers Impedance

n/a

Weight

35 Lbs.

Dimensions

9 5/8" H x 22 3/4" W x 10 3/8" D

Available Formats

Head, Rackmount & 1x12 Combo

Amp Type

Tube

Rectifier Type

Silicon Diodes

Rectifier Tubes

n/a

Variac PowerSwitch

n/a

Preamp Tubes

6x Mesa 12AX7, 1x Mesa 12AT7

Power Amp Tubes

2x Mesa EL-34 (or 6V6 or 6L6)

Maintenance Free Fixed Bias

Yes

Wattages Quick Reference

50 Watts

Built In Power Amp Attenuation

n/a

Power Amp Details Class Wattage

Class A/B Power for exceptional power, tight punch and clarity - Produces 50 Watts of power

Number Of Style Modes

Six

Number Of Style Modes Per Channel

Two

Channel Controls

Each Channel features Independent 2-Position Style Mode Switch, Gain, Treble, Mid, Bass, Presence, Reverb (back panel), and Master Controls

Graphic Eq And/or Contour

n/a

Reverb Effects Bypass Options

Footswitchable, All-Tube, Short-Tank Spring Reverb with Independent Channel Controls (rear panel)

Effects Loop Bypass Options

Footswitchable, Fully Buffered Series Tube FX Loop

Global Output Level Control

Yes (Over all channels)

Global Solo Level Control

Yes (Over all channels)

True Bypass Options

n/a

External Switching Jack Options And/or Midi

MIDI Switchable/Programmable via Control Change and Program Change messages, with 256 Preset Location (MIDI IN, MIDI Thru/Out, MIDI Channel & Store Switches) – Controls Channels 1, 2, 3, Reverb, FX Loop & Solo

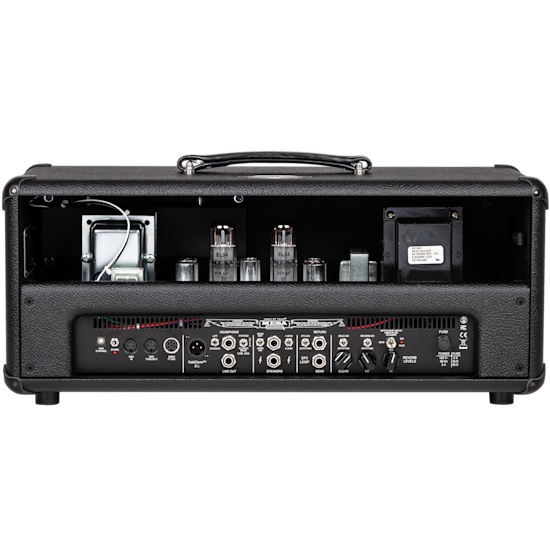

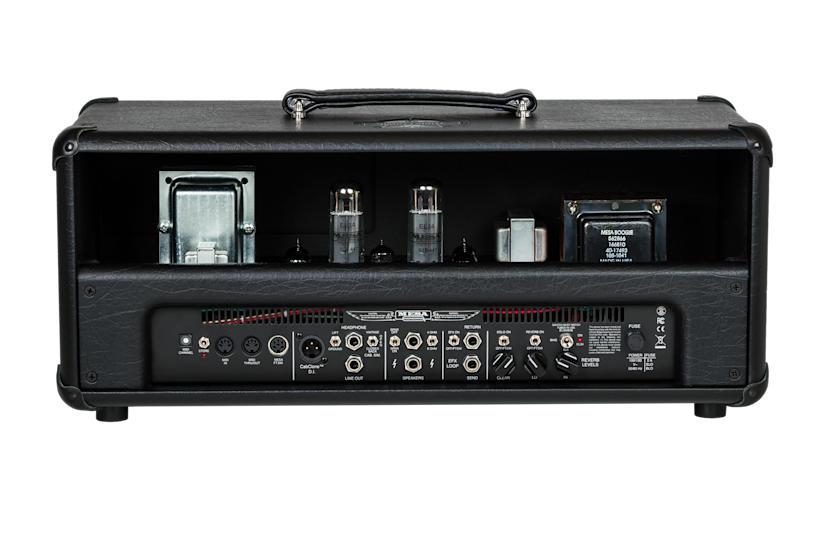

Speaker Outputs

8 Ohm / 4 Ohm Switch with Two Speaker Jacks

Cabinet Simulation Direct Live recording Output

Built-in MESA CabClone™ Cab Simulator Output featuring Closed Back, Open Back & Vintage Cabinet Simulations, Internal Amp Load, Headphone Output & Uncompensated Line (Slave) Output, Speaker On/Off & Ground/Lift Switches

Internal Amp Load For SpeakerLess Performance

Yes (see Cabinet Simulation for more information)

Headphone Output

Yes (see Cabinet Simulation for more information)

Slave Output

Yes (Uncompensated Line Output works as Slave Out)

Extra Features

n/a

Footswitch

Included - 3x3 - 6 Button Footswitch (Bottom Row: Ch. 1, Ch. 2 & Ch. 3 - Top Row: Reverb, FX Loop & Solo)

Slip Cover

Included - Fitted Slip Cover

Cabinet Material

Marine Grade, Baltic Birch

Standard Finish Options (No Extra Cost)

Black Bronco Vinyl, Black Jute Grille, Black Handle & Corners

Custom Finish Options

See Custom Finish Gallery

Speakers Impedance

n/a

Casters

n/a

Extra Features

n/a

Weight

35 Lbs.

Height

9 5/8"

Width

22 3/4"

Depth

10 3/8"

Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
