Wattage

Multi-Watt™ 1, 10 or 20

Channels & Modes

1 Channel

Mode Voicings styles

Single Channel with two Inputs: Normal Input = Clean to Overdrive Low Input = Clean

Graphic Eq Reverb Fx Solo

Reverb

Foot switchable Functions

Reverb (Footswitch & Cable sold seperately)

Speakers Impedance

n/a

Weight

23 Lbs.

Dimensions

8 3/4" H x 16 1/4" W x 10" D

Available Formats

Head, 1x10 & 1x12 Combo

Amp Type

Tube

Rectifier Type

Silicon Diodes

Rectifier Tubes

n/a

Variac PowerSwitch

n/a

Preamp Tubes

5x Mesa 12AX7 & 1x Mesa 12AT7

Power Amp Tubes

2x Mesa 6V6

Maintenance Free Fixed Bias

Fixed Bias (20- & 10-Watt Modes) & Cathode Bias (2-Watt Mode) both provide consistent, maintenance-free performance

Wattages Quick Reference

1, 10 or 20 Watts - See Power Amp Details for more information

Built In Power Amp Attenuation

n/a

Power Amp Details Class Wattage

Mesa's Patented Incremental Multi-Watt™ (Patent 9,917,560) Power Amp, featuring Duo-Class™ (Patent 7,173,488) and Dyna-Watt technologies, provides three power, two operating-classes and three wiring configuration options via one 3-Way Power Switch - Choose from the following power options: 20 Watts - 2x6V6 Class A/B Pentode – Fixed Bias 10 Watts - 2x6V6 Class A/B Triode – Fixed Bias 1 Watt - 1x6V6 Pentode, Single-Ended Class A – Cathode Bias -More information on Dyna-Watt Power can be found in the Owners Manual, which is available in the Support Section of this website.

Number Of Style Modes

Two (Inputs)

Number Of Style Modes Per Channel

Two (Inputs)

Channel Controls

Gain, Treble, Mid, Bass, Presence, Reverb and Master

Graphic Eq And/or Contour

n/a

Reverb Effects Bypass Options

All-Tube, Spring Reverb

Effects Loop Bypass Options

Fully Buffered Series FX Loop

Global Output Level Control

n/a

Global Solo Level Control

n/a

True Bypass Options

n/a

External Switching Jack Options And/or Midi

External Switching Jack for Reverb On/Off (Reverb Footswitch and Cable sold seperately)

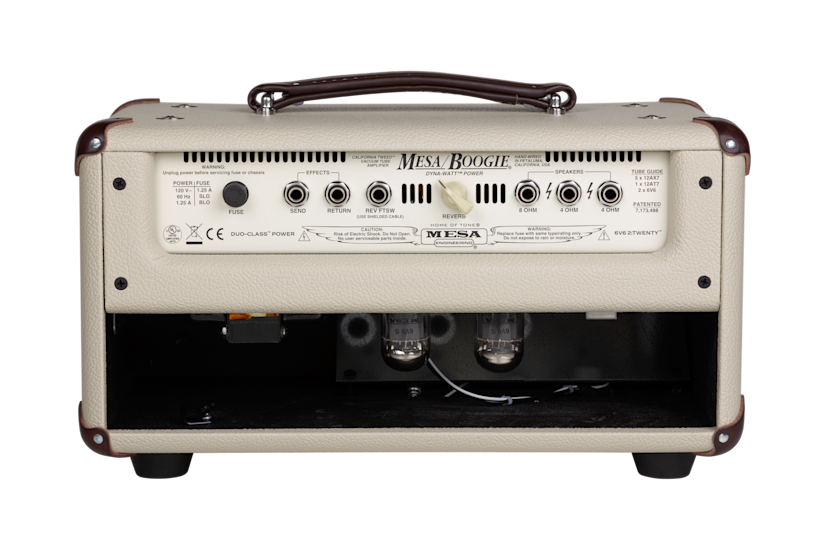

Speaker Outputs

One 8 Ohm and Two 4 Ohm

Cabinet Simulation Direct Live recording Output

n/a

Internal Amp Load For SpeakerLess Performance

n/a

Headphone Output

n/a

Slave Output

n/a

Extra Features

n/a

Footswitch

Optional - 1 Button Footswitch (Reverb) & Cable (Sold Seperately)

Slip Cover

Included - Fitted Slip Cover

Cabinet Material

Marine Grade, Baltic Birch

Standard Finish Options (No Extra Cost)

Choice of Cream Bronco Vinyl, Cream/Tan Weave Jute Grille, Brown Handle & Corners or Black Bronco or Black Taurus Vinyl, Black Jute Grille, Black Handle & Corners

Custom Finish Options

See Custom Finish Gallery

Speakers Impedance

n/a

Casters

n/a

Extra Features

Vintage-Inspired Construction for Tone & Portability

Weight

23 Lbs.

Height

8 3/4"

Width

16 1/4"

Depth

10"

Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
