Subway D-800+ Bass Amp (Metal Head)
Upgraded Features for More Tonal Control and an Interface for Outboard Signal Processing
The SUBWAY D-800+ addresses the player who wants enhanced frequency control and an interface for outboard signal processing. The upscale D-800+ preamp features expand upon the acclaimed D-800 by including a comprehensive EQ section with Semi-Parametric sweep-able LOW and HIGH MID Bands, the addition of a BRIGHT switch, an adjustable HIGH-PASS Filter with control from 30Hz to 150 Hz, and on the Rear Panel, a Series Effects Loop, Tuner Output and 1/4" MUTE footswitch jack. Either way you get there, the straight ahead and beautifully simple D-800 or the upscale, fully featured D-800+, the SUBWAYS deliver nuance-rich Tone, stunning power and headroom and a blend of flexibility and portability that would be any Bassist's dream ride to musical inspiration.
Preamp Type
Solid-State Preamp
Wattage
800 Watts @ 4 or 2 Ohms / 400 Watts @ 8 Ohms
Graphic Eq Reverb Fx Solo
Variable High-Pass Filter (30Hz – 150Hz), Variable Voicing (Flat to Vintage Scoop), Fully Active 4-Band EQ (+/- 12dB of Bass, Low-Mid, High-Mid, Treble) with Sweepable (variable) Low-Mid (150Hz-1800Hz) & High-Mid (300Hz-5000Hz) Frequency Controls with Deep Switch (for enhanced low-end) & Bright Switch (for enhanced top-end)
Foot switchable Functions
External Switching Jack for Mute (Footswitch Sold Separately)
Weight
6.3 Lbs.
Dimensions
2.625" H x 13.25" W x 10.15" D
Available Formats
(Metal) Head
Amp Type
Solid-State Preamp & Class D Power Amp
Preamp Tubes
n/a
Power Amp Tubes
Class D Power Amp
Wattages Quick Reference
800 Watts @ 4 or 2 Ohms / 400 Watts @ 8 Ohms
Power Amp Details Class Wattage
Light-Weight, Compact Class D Power Amp with Protection & Limit LED Indicators
Effects Loop Bypass Options
Fully Buffered Series FX Loop
External Switching Jack Options And/or Midi
External Switching Jack for Mute Mode (Footswitch Sold Separately)

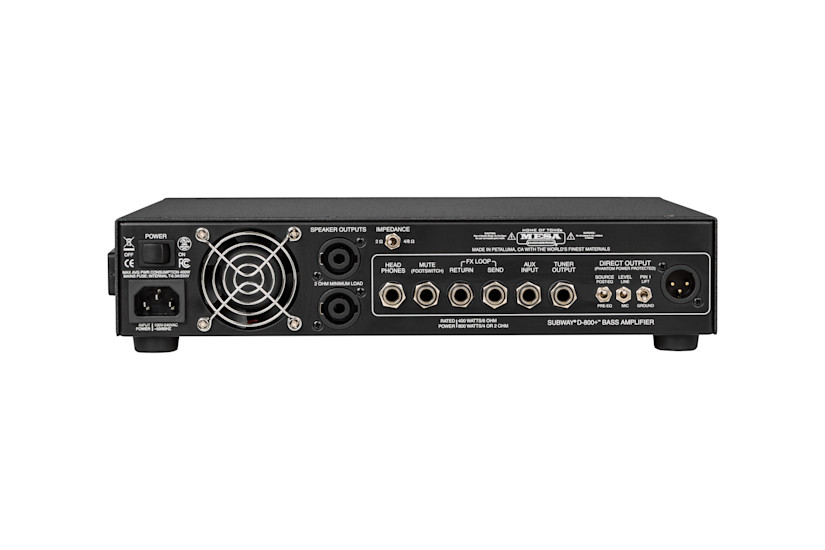

Speaker Outputs
2 - Speakon Output Jacks (no 1/4" speaker jacks) - 8, 4 or 2 Ohms
Cabinet Simulation Direct Live recording Output
Balanced XLR Out with Pre/Post, Line/Mic & Ground Lift Switches
Slave Output
n/a
Extra Features
Headphone Output and Auxiliary Input
Footswitch
Optional (Sold Separately) - 1 Button Mute Footswitch
Slip Cover
Included - Gig Bag with Shoulder Strap
Cabinet Material
n/a
Standard Finish Options (No Extra Cost)
n/a
Custom Finish Options
n/a
Speakers Impedance
n/a
Casters
n/a
Extra Features
n/a
Weight
6.3 Lbs.
Height
2.625"
Width
13.25"
Depth
10.15"
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
