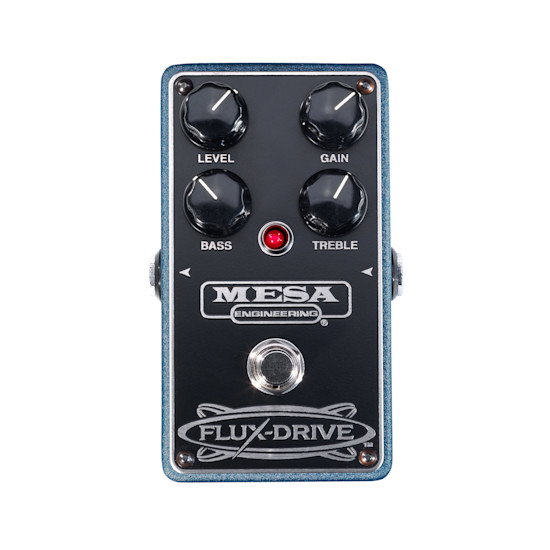

Flux-Drive
The Overdrive Pedal for Those Who Want More of All the Best Things From an Overdrive
The FLUX-DRIVE™ is the overdrive pedal for those who want more of all the best things from an overdrive! It has more liquid gain and enhanced sustain that easily feeds into rich harmonic overtones making it incredibly addictive and inspiring to play, whether into a clean amp channel or especially to enhance a crunch or higher gain channel! It also offers a more complete tone-shaping network with individual Treble and Bass controls. This architecture makes the FLUX-DRIVE a more complete preamp with added versatility beyond that of most overdrive pedals. PRODUCT FEATURES: - Designed and Handcrafted in Petaluma, California, USA - True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss - Gain Control allows you to dial in the perfect amount of vocal-overdrive, dynamic to sustaining - Master Level Control provides a variable range of signal boost up to +20dB - Bass & Treble Controls provide +/- 12dB of EQ boost or cut for exceptional tone shaping - On/Off Status LED - 9V Battery Powered or Externally Powered (optional) via External Power Jack Input - Input & Output Jacks (Nominal Input -20dB)
The FLUX-DRIVE™ is the overdrive pedal for those who want more of all the best things from an overdrive! It has more liquid gain and enhanced sustain that easily feeds into rich harmonic overtones making it incredibly addictive and inspiring to play, whether into a clean amp channel or especially to enhance a crunch or higher gain channel! It also offers a more complete tone-shaping network with individual Treble and Bass controls. This architecture makes the FLUX-DRIVE a more complete preamp with added versatility beyond that of most overdrive pedals. PRODUCT FEATURES: - Designed and Handcrafted in Petaluma, California, USA - True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss - Gain Control allows you to dial in the perfect amount of vo . . .
Controls
Gain Control allows you to dial in the perfect amount of vocal-overdrive, dynamic to sustaining, Master Level Control provides a variable range of signal boost up to +20dB, Bass & Treble Controls provide +/- 12dB of EQ boost or cut for exceptional tone shaping
Switches
True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss,
Led Indicators
On/Off Status LED
Power Requirements
9V Battery Powered or optional AC Powered via External Power Jack Input. WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
Current Draw
9VDC/15mA
Input Output Jacks
Input & Output Jacks (Nominal Input -20 db)
Input Impedance
1M Ohm (500k Ohm minimum)
Output Impedance
10k Ohm
Switching Type
True Bypass
Dimensions
4.77 x 2.87 x 2.28
Weight
0.802
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
