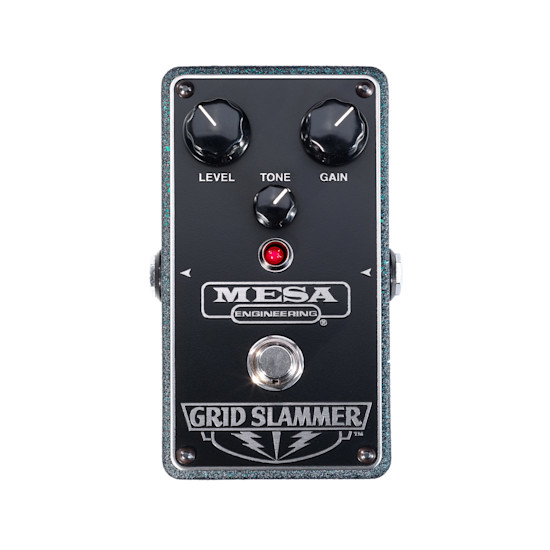

Grid Slammer
A Classic, Guitar-Centric Midrange Bump that Enhances Many Different Playing Styles
The GRID SLAMMER™ overdrive pedal produces a variable boost in gain over a wide range with a classic, guitar-centric midrange bump that enhances many different playing styles. It’s a true overdrive “specialist” that covers an amazing array of what many top players consider the most expressive and musical ranges of overdrive. From sweet, subtle breakup to a harmonically smoldering overdrive that can both sting and sing, the GRID SLAMMER sets a new bar in legendary overdrive! PRODUCT FEATURES: - Designed and Handcrafted in Petaluma, California, USA - True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss - Gain Control allows you to dial in the perfect amount of vintage breakup or classic overdrive - Master Level Control provides a variable range of signal boost up to +20dB - Tone Control balances the amount of high frequencies - On/Off Status LED - 9V Battery Powered or Externally Powered (optional) via External Power Jack Input - Input & Output Jacks (Nominal Input -20dB)
The GRID SLAMMER™ overdrive pedal produces a variable boost in gain over a wide range with a classic, guitar-centric midrange bump that enhances many different playing styles. It’s a true overdrive “specialist” that covers an amazing array of what many top players consider the most expressive and musical ranges of overdrive. From sweet, subtle breakup to a harmonically smoldering overdrive that can both sting and sing, the GRID SLAMMER sets a new bar in legendary overdrive! PRODUCT FEATURES: - Designed and Handcrafted in Petaluma, California, USA - True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss - Gain Control allows you to dial in the perfect amount of vintage breakup or classic overdrive - Master Level Control provides a variable rang . . .
Controls
Gain Control allows you to dial in the perfect amount of vintage breakup or classic overdrive, Master Level Control provides a variable range of signal boost up to +20db, Tone Control balances the amount of high frequencies
Switches
True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss,
Led Indicators
On/Off Status LED
Power Requirements
9V Battery Powered or optional AC Powered via External Power Jack Input. WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
Current Draw
9VDC/15mA
Input Output Jacks
Input & Output Jacks (Nominal Input -20 db)
Input Impedance
1M Ohm (500k Ohm minimum)
Output Impedance
10k Ohm
Switching Type
True Bypass
Dimensions
4.77 x 2.87 x 2.28
Weight
0.731
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
