This item is out of stock, but we build most left-handed guitars on demand. Learn More

An Incredibly Useful and Expressive Pedal that Makes the Best Things Sound Even Better

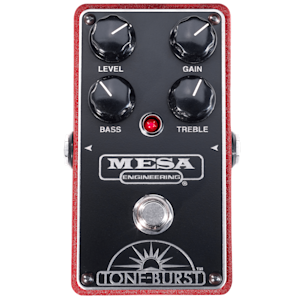

The TONE-BURST™ Boost/Overdrive offers a virtually transparent gain range usually associated with “clean” boost pedals. However, the TONE-BURST has enough gain to boost your guitar to the threshold of clip and slightly beyond, making it far more useful for a variety of applications. It’s incredibly powerful for adding boost, drive and/or EQ to any guitar and amp combination. Whether using it as a utility to boost the output of single coils to match a humbucker or as a subtle overdrive when a standard overdrive may be too much, the TONE-BURST is an incredibly useful and expressive pedal that makes the best things sound even better! PRODUCT FEATURES - Designed and Handcrafted in Petaluma, California, USA - True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss - Gain Control allows you to dial in the perfect amount of boost or mild overdrive - Master Level Control provides a variable range of signal boost up to +20dB - Bass & Treble Controls provide +/- 12dB of EQ boost or cut for exceptional tone shaping - On/Off Status LED - 9V Battery Powered Externally Powered (optional) via External Power Jack Input - Input & Output Jacks (Nominal Input -20dB)

The TONE-BURST™ Boost/Overdrive offers a virtually transparent gain range usually associated with “clean” boost pedals. However, the TONE-BURST has enough gain to boost your guitar to the threshold of clip and slightly beyond, making it far more useful for a variety of applications. It’s incredibly powerful for adding boost, drive and/or EQ to any guitar and amp combination. Whether using it as a utility to boost the output of single coils to match a humbucker or as a subtle overdrive when a standard overdrive may be too much, the TONE-BURST is an incredibly useful and expressive pedal that makes the best things sound even better! PRODUCT FEATURES - Designed and Handcrafted in Petaluma, California, USA - True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no . . .

{{guitar.Name}} Videos

{{activeVideo.Name}}

Controls

Gain Control allows you to dial in the perfect amount of boost or mild overdrive, Master Level Control provides a variable range of signal boost up to +20db, Bass & Treble Controls provide +/- 12db of EQ boost or cut for exceptional tone shaping

Switches

True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss,

Led Indicators

On/Off Status LED

Power Requirements

9V Battery Powered or optional AC Powered via External Power Jack Input. WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.

Current Draw

9VDC/15mA

Input Output Jacks

Input & Output Jacks (Nominal Input -20 db)

Input Impedance

2M Ohm (500k Ohm minimum)

Output Impedance

10k Ohm

Switching Type

True Bypass

Dimensions

4.77 x 2.87 x 2.28

Weight

0.802

Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
