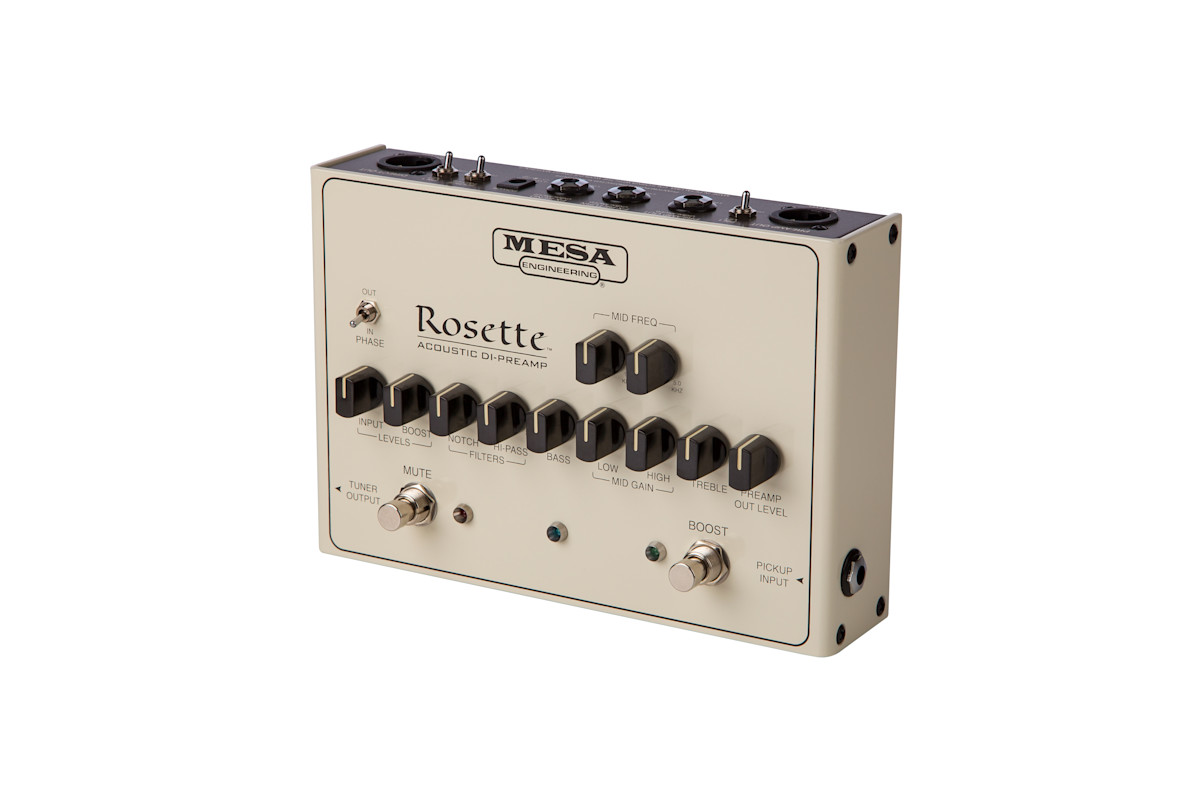

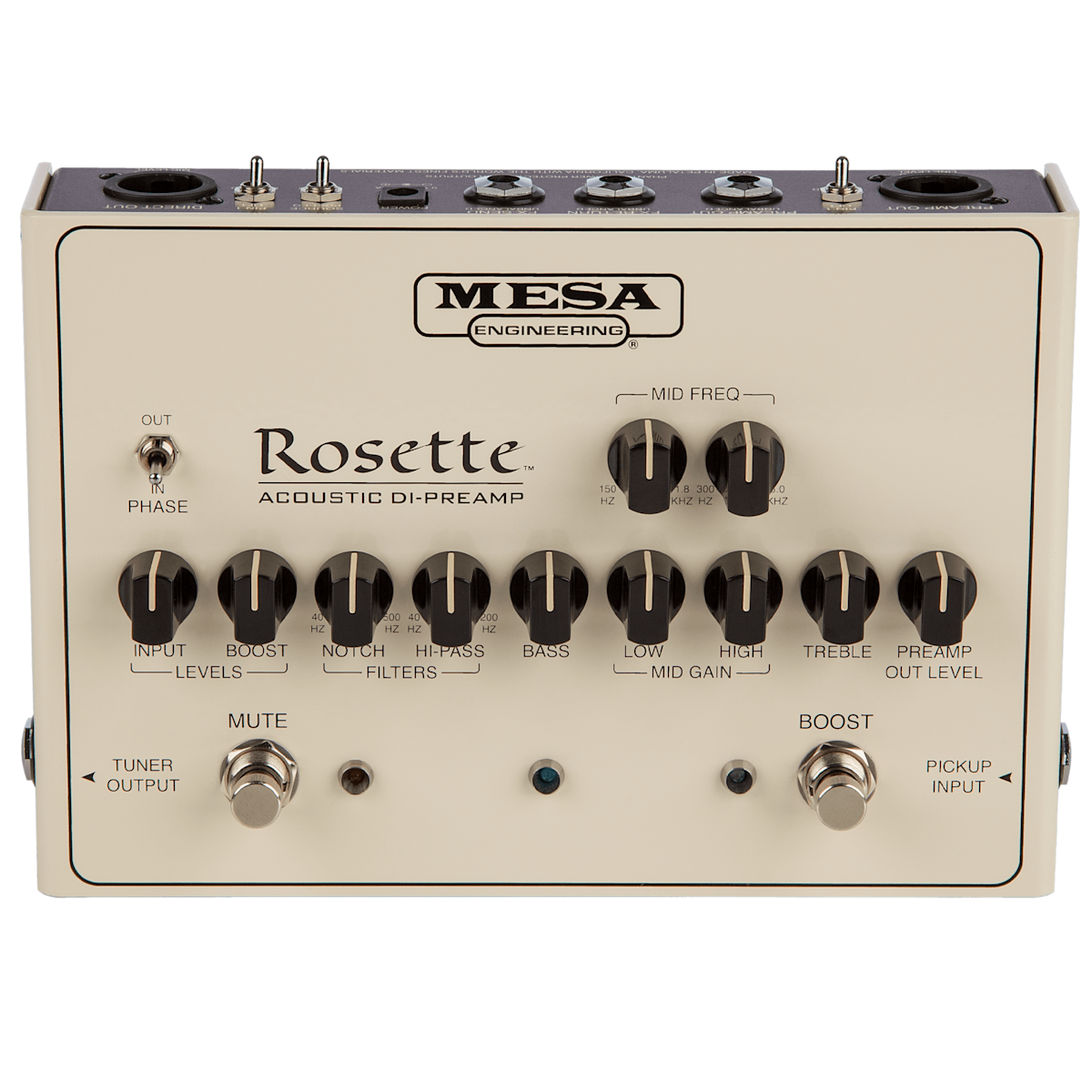

Rosette Acoustic DI-Preamp
Preamp Type
Solid-State Preamp
Channels/Inputs
1 Channel / 1/4" Pickup Input (active or passive)
Drive Dynamics Control
n/a
Graphic Eq Reverb Fx Solo
Variable Notch Filter (40Hz to 500Hz), Variable Hi-Pass Filter (40Hz to 200Hz), Fully Active 4-Band EQ Controls (+/- 12dB of Bass, Low-Mid, High-Mid & Treble) with Sweepable (variable) Low-Mid (150Hz-1800Hz) & High-Mid (300Hz-5000Hz) Frequency Controls
Fx Boost Solo
FX Loop / Footswitchable Boost (Solo) with Variable Boost Level Control
Foot switchable Functions
Mute & Boost (Solo)
Weight
2 Lbs.
Dimensions
2.2625" H x 5.5" W x 8.1875" D
Available Formats
DI-Preamp Pedal
Preamp Type
Solid-State
Preamp Tubes
n/a
Preamp Details
Solid-State Preamp featuring Phase Switch, Input Level Control, Boost Footswitch with Variable Boost Level Control, Variable Notch Filter (40Hz to 500Hz), Variable Hi-Pass Filter (40Hz to 200Hz), Fully Active 4-Band EQ Controls (+/- 12dB of Bass, Low-Mid, High-Mid & Treble) with Sweepable (variable) Low-Mid (150Hz-1800Hz) & High-Mid (300Hz-5000Hz) Frequency Controls, Seperate Preamp Output Level Control (dedicated to the Line Level Preamp Outputs) & Mute/Tune Footswitch
Effects Loop
FX Loop
Tuner Output/Mute
Yes with Footswitchable Mute
External Switching Jack Options
n/a
Extra Preamp Features
AC or Battery Powered, auto-switches to battery if AC fails and battery is installed
Footswitch
n/a
Slip Cover
n/a
Weight
2 Lbs.
Height
2.5625"
Width
5.5"
Depth
8.1875"
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
